Home>Phase Change>LD PC-V10> LD PC-V10 Phase Change - Black

LD PC-V10 Phase Change - Black

LD PC-V10 ATX/HPTX Black with integrated Phase Change.

More details

1 464,00 € tax incl.

PC-V10-B


Notify me when available



NEW LD PC-V10 Phase Change + Watercoolig PC case with 10 expansion slots.

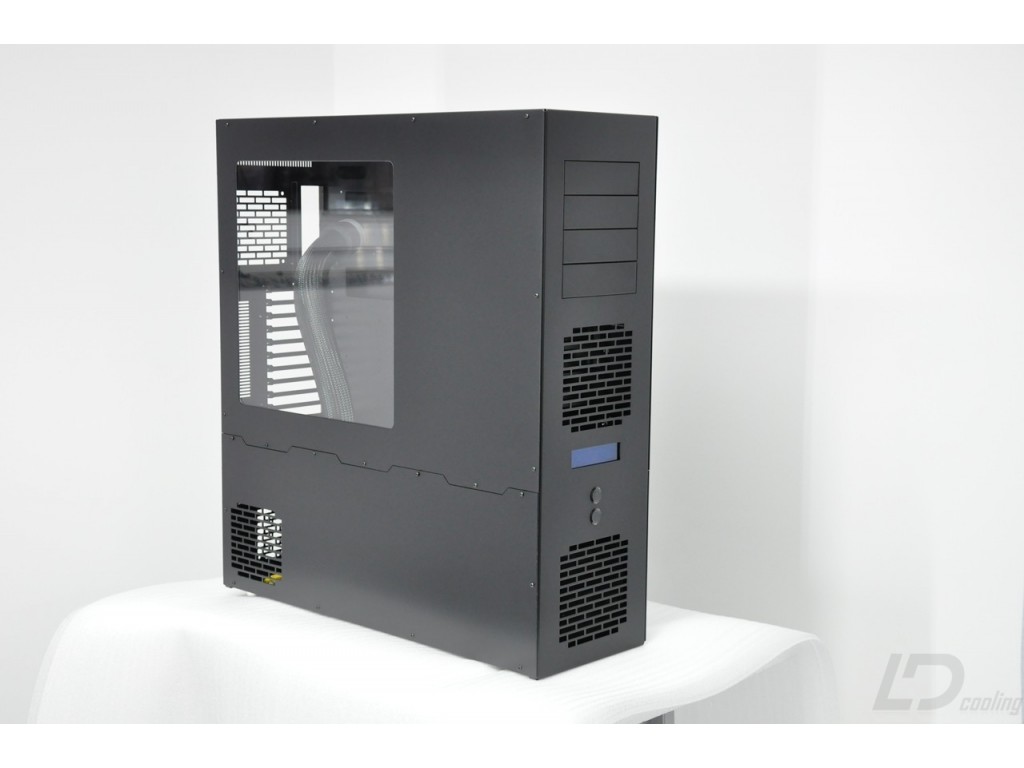

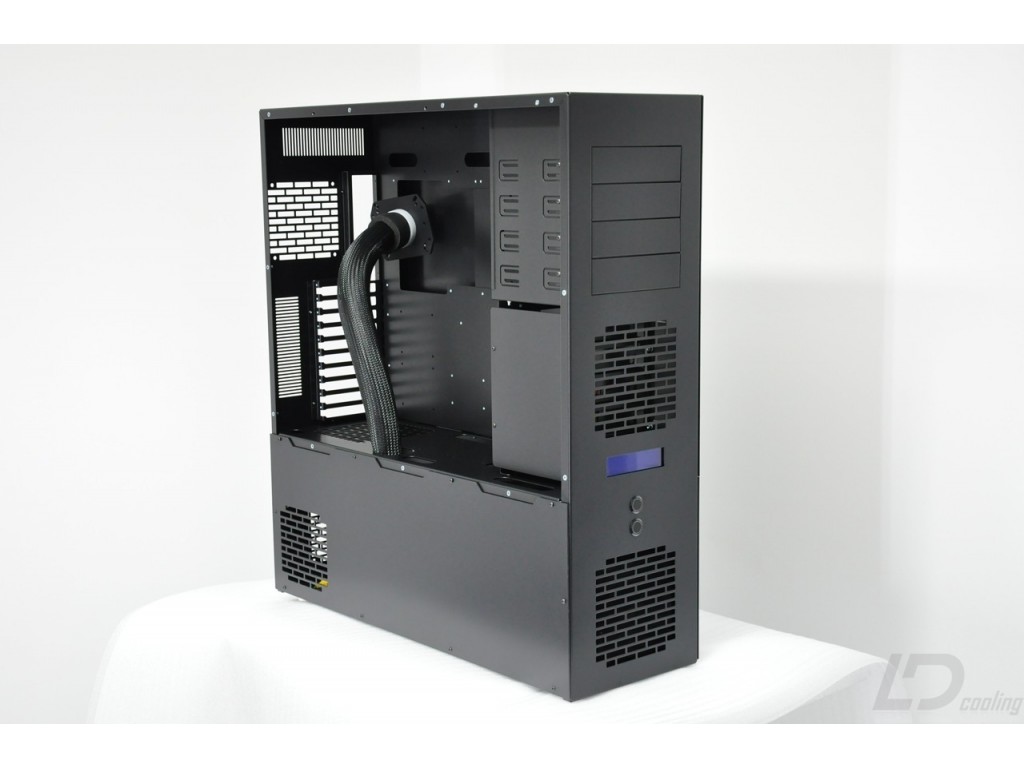

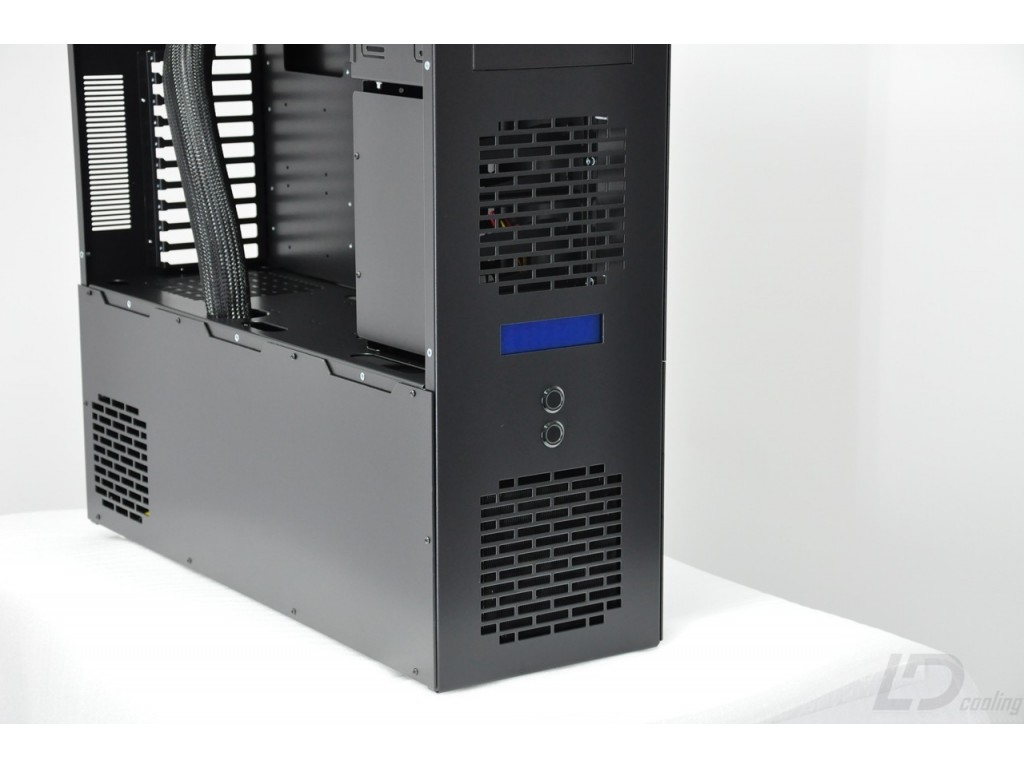

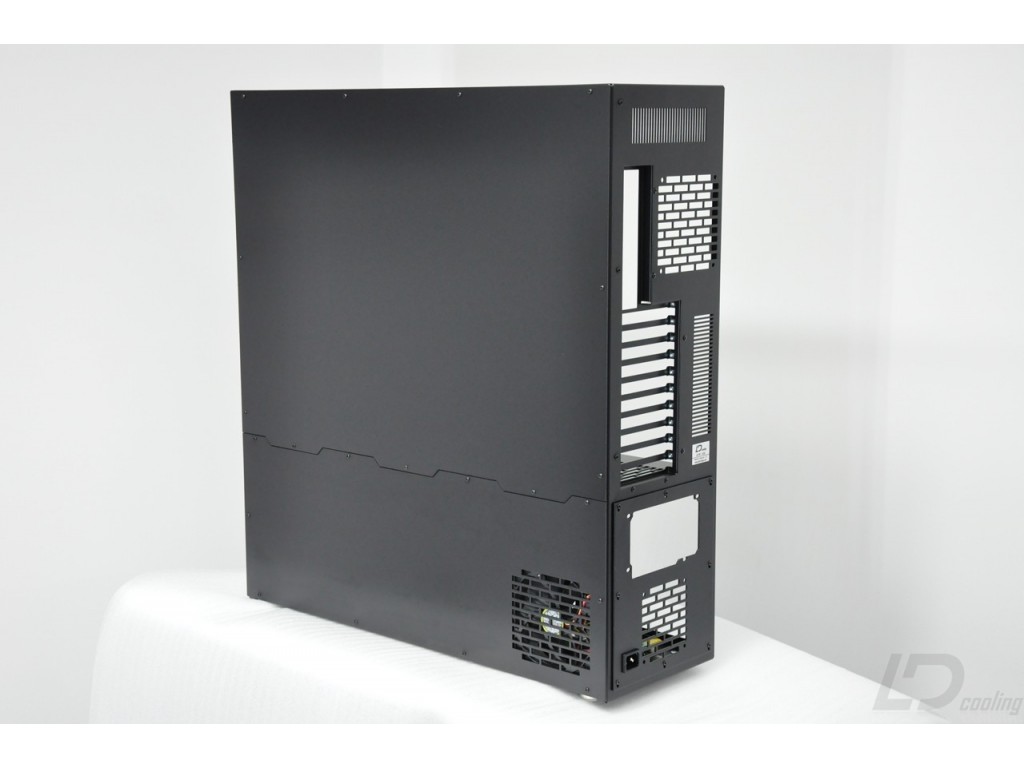

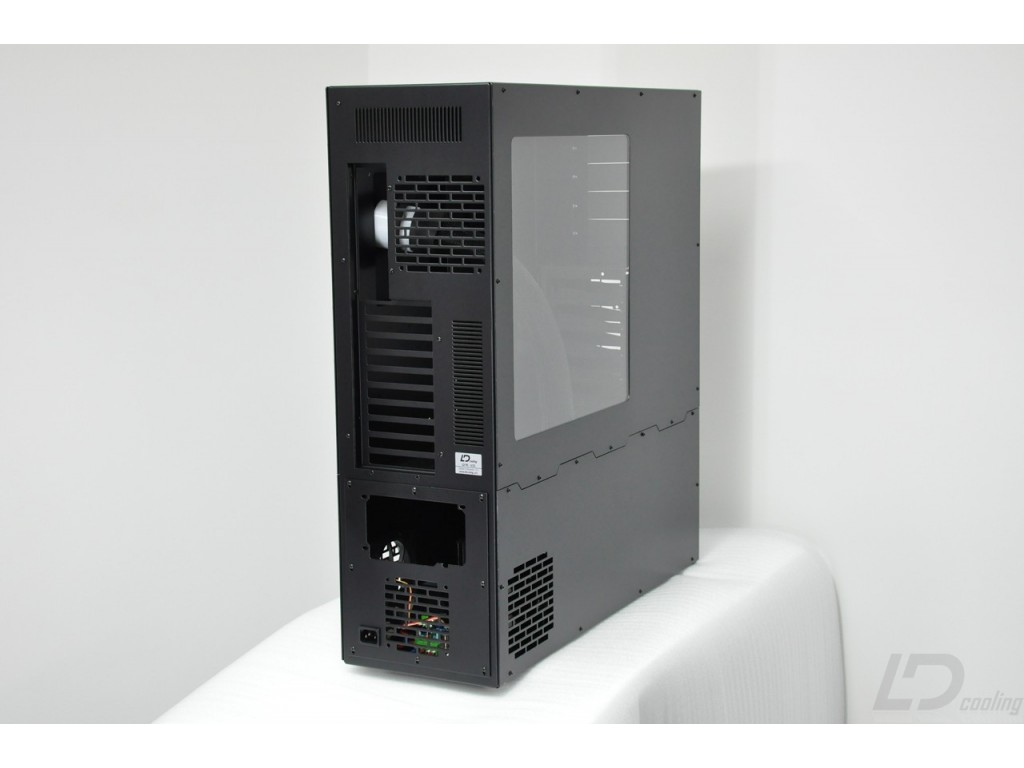

LD PC-V10 Reverse case is made of 100% Aluminium only base plate for Phase Change system is made of Steel because of Phase Change weight in the bottom. It weighs around 25,00kg with Phase Change installed. All cases are powder coated in perfect matte colour. In the front of the case is place to instal 1 x 140mm fan. Cut-out for fan on the backside under PSU is 92mm. All other cut-outs are for 120mm fans. On the top of the case is place to install 480mm radiator.

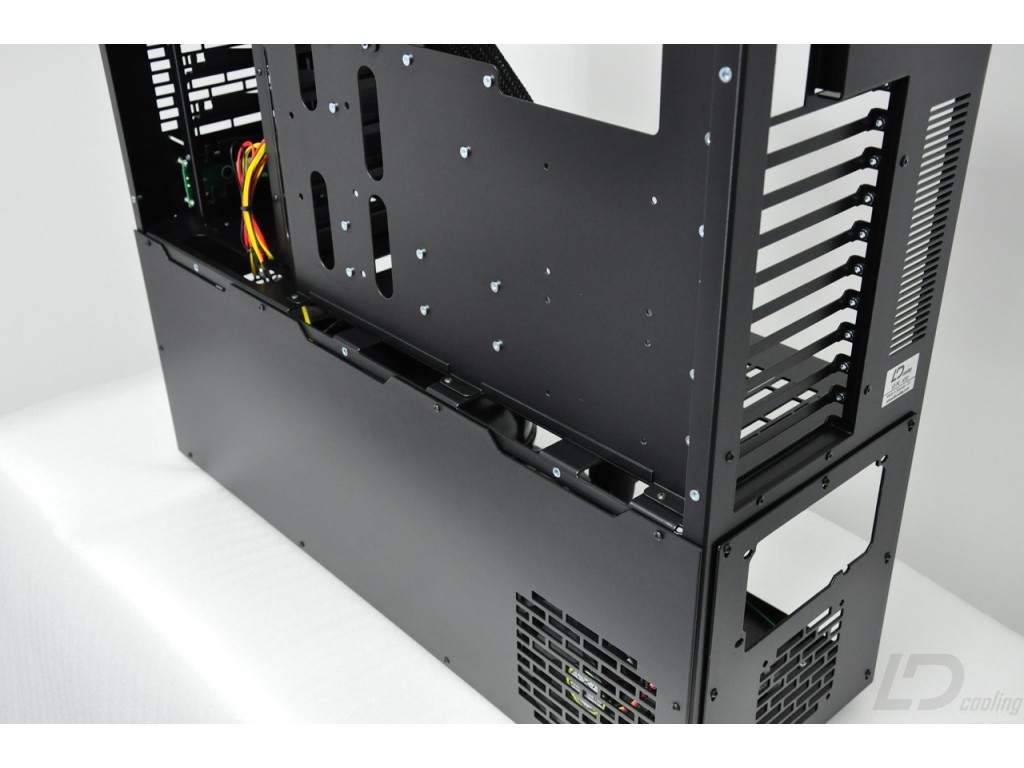

Bottom compartment is reserved for Integrated Phase Change system!



Dimensions (L x W x H):

650 x 220 x 720 mm (including case feet)

Weight:

25kg with Phase Change

Expansion Slots:

10

5.25" Bays:

4

Colour:

Black RAL9005

Motherboard Support:

ATX

ATX-E

ATX-XL

Power / Reset Switches:

2x Illuminated Switches

Case feet:

4 x Aluminium case feet with screws

Included:

Motherboard Screws
Bay Device Screws
Expansion Slot Screws
Anti-Vibration HDD Screws

HDDs on Anti-Vibration Legs:

5

Internal SDDs:

8

Internal Liquid Cooling System:

Yes

Internal Phase Change system:

Yes

Radiators - Top Compartment:

1x Quad 120mm (480mm)


PCI covers are not included. If you need them, you can get them here.

Phase Change Specifications:

Power:

 300W at -30°c on Evaporator Head

Motherboard Support:

Universal Mounting for all Sockets (775, AM3,i5, i7, Socket 2011 )

Insulation:

Included

Mounting:

All mounting material included (screws, washers, bolts...)

Backplate:

Included

Controler:

LD cooling K-Type USB Controler NEW!

Function:

Phase Change controler is connected to Motherboard with 2 pin cable.
When you press power button on Phase Change, system automaticly start counting down from 4min and after that, compressor start running.
When evaporator temperature reach -25°c controler automaticly start PC and check 12V line if everything works ok. (If controler doesn't recognize 12V line Phase Change will shut down!)
When you turn off computer, you have to shut down PC first and after 10 secoonds Phase Change automaticly turns off.


We will soon relase controler software for - Windows, MAX and Linux where users can control fan speed, LCD light, brightness....etc

Power Supply:

230 - 240V 50Hz
